All-in-One Data Center
C-CUBE enables the rapid deployment of all-in-one data centers through our innovative small modular concept, designed to meet the growing demand for edge modular data center solutions.
We have developed and are presenting the C-CUBE all-in-one data center solutions in 50 kW and 100 kW configurations.
Each C-CUBE solution can be customized to meet specific customer requirements, offering flexibility in both technology selection and IT load capacity.
| Solution | Single-module plug-and-play |
|---|---|
| IT load | 50 kW or 100 kW |
| Module, 50 kW | 7 m × 3.5 m |
| Module, 100 kW | 10.5 m × 3.5 m |
At a glance

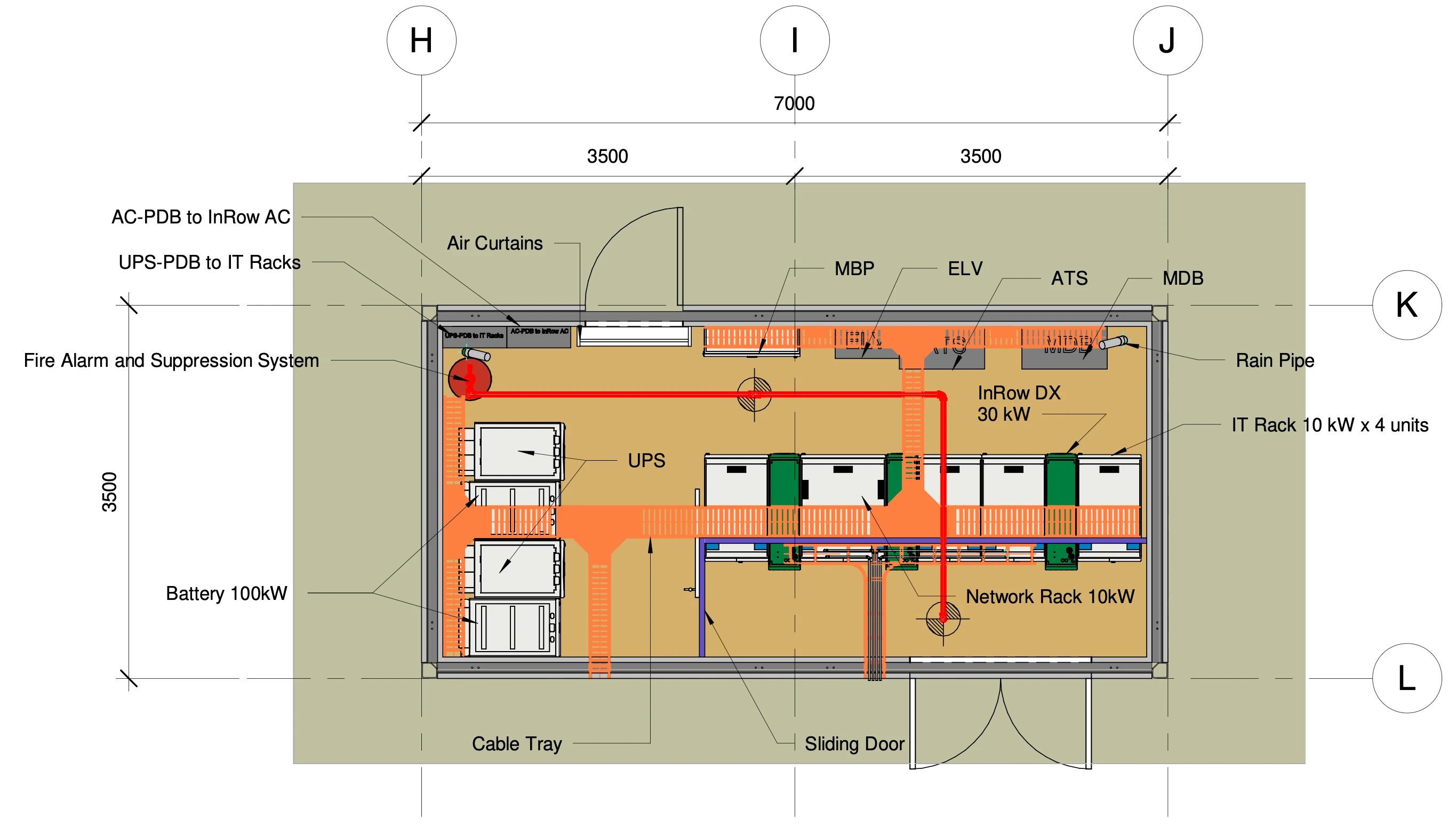

50 kW configuration

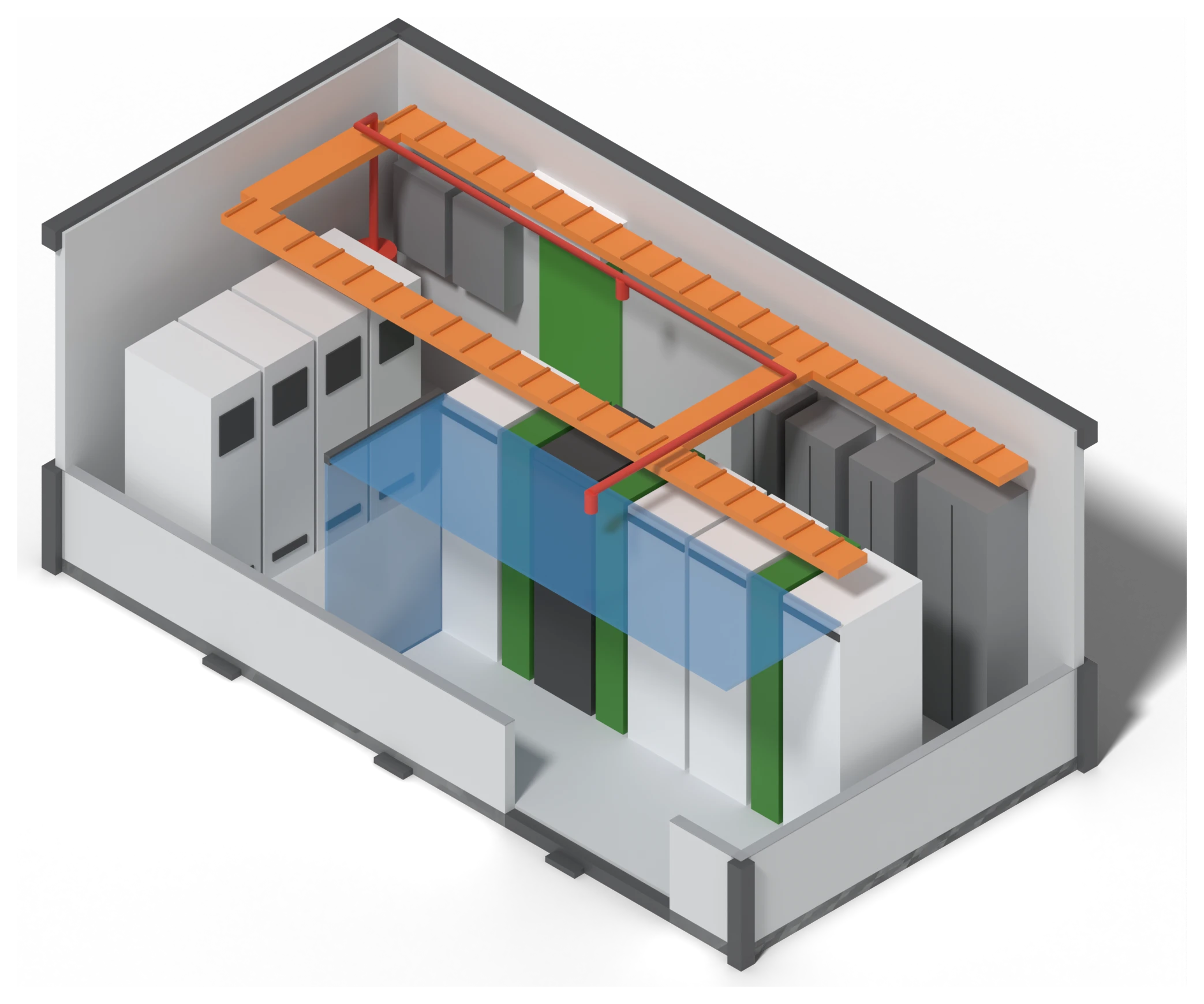

Inside the module (50 kW)
Module: 7 m × 3.5 m
- IT racks: 4 × 10 kW
- Network rack: 10 kW
- In-row DX cooling units: 30 kW
- Uninterruptible power supply (UPS) and 100 kW battery
- Electrical panels: MDB, ATS, MBP, and ELV
- Fire alarm and suppression system
- Cable trays, air curtain, and sliding door
Depending on each project, the cooling unit may be placed on the ground or on top of the module.

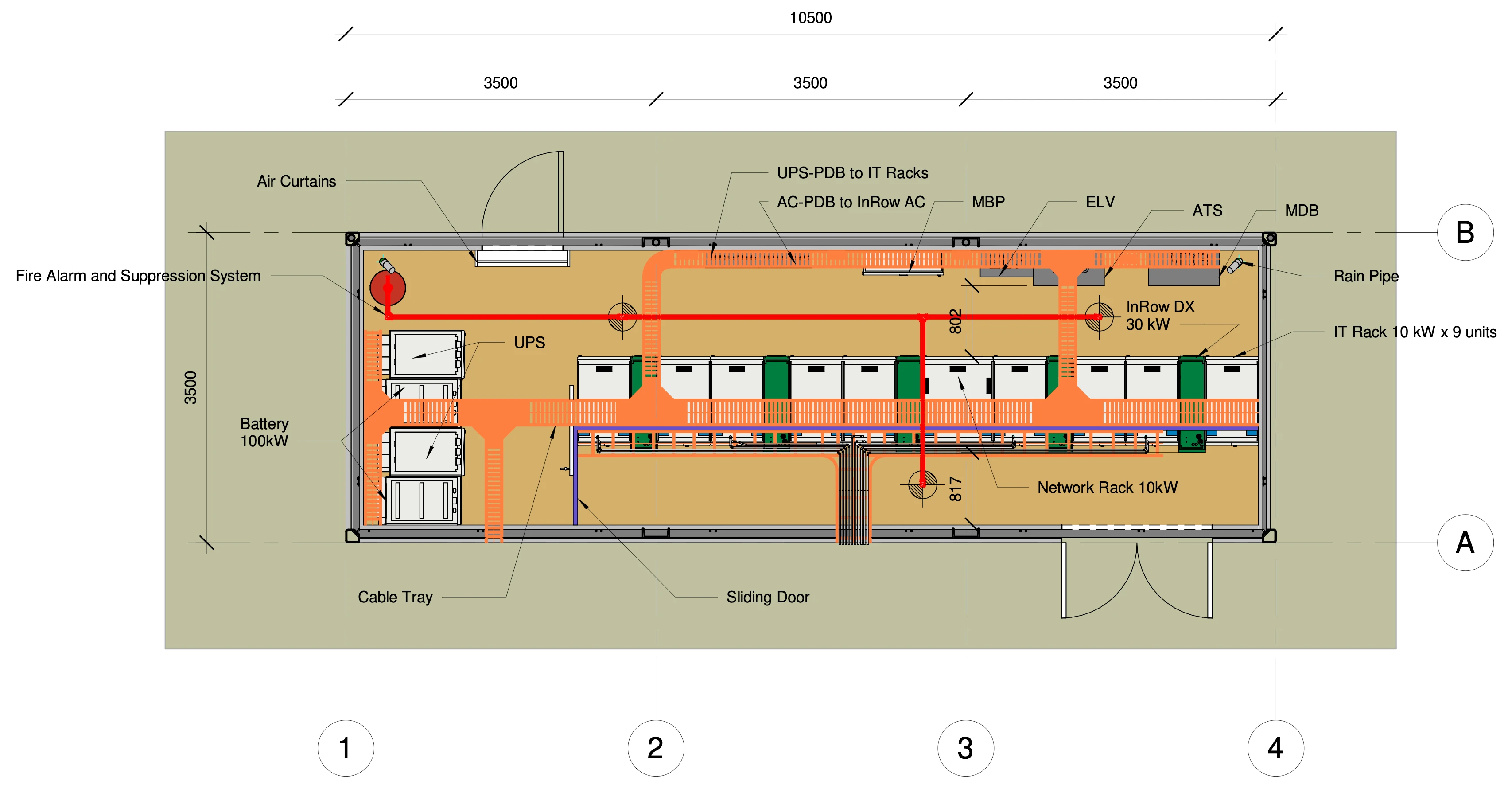

100 kW configuration

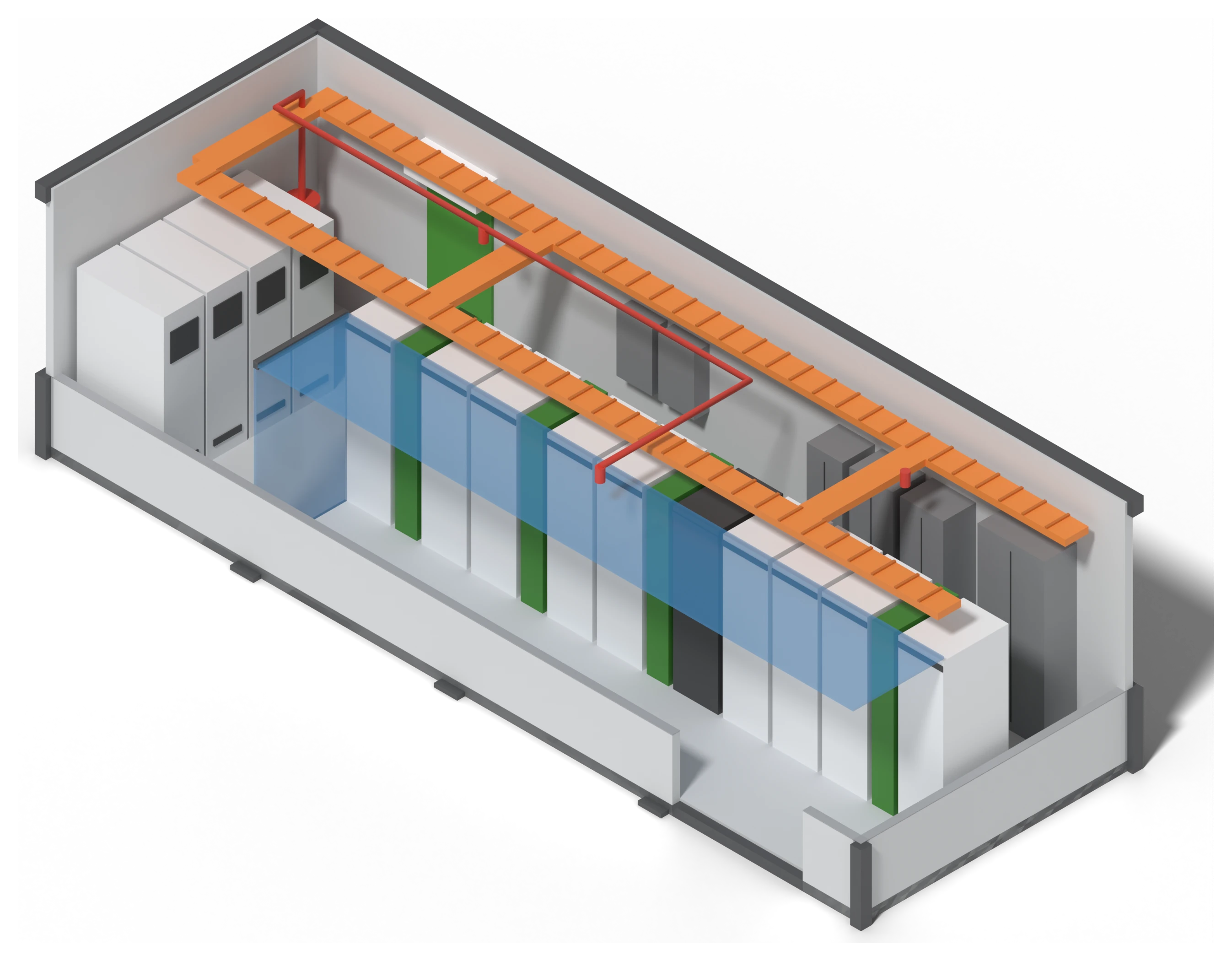

Inside the module (100 kW)
Module: 10.5 m × 3.5 m
- IT racks: 9 × 10 kW
- Network rack: 10 kW
- In-row DX cooling units: 30 kW
- Uninterruptible power supply (UPS) and 100 kW battery
- Electrical panels: MDB, ATS, MBP, and ELV
- Fire alarm and suppression system
- Cable trays, air curtain, and sliding door
Depending on each project, the cooling unit may be placed on the ground or on top of the module.

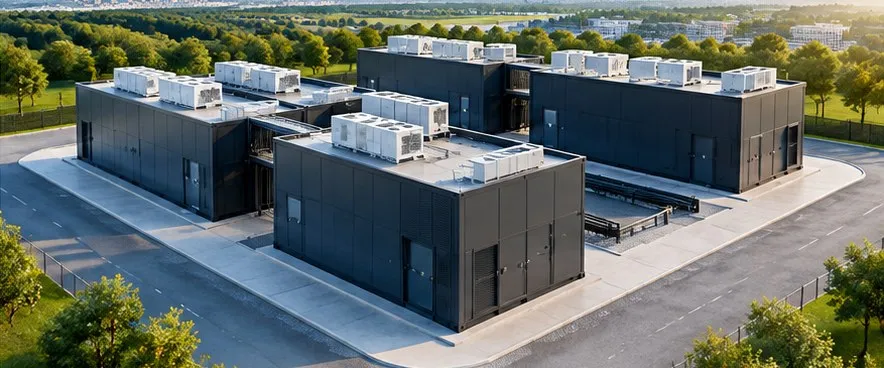

Other modular applications
Need a data center like this one?
We can adapt this solution to your requirements in terms of technology and IT load capacity. Tell us about your project.
